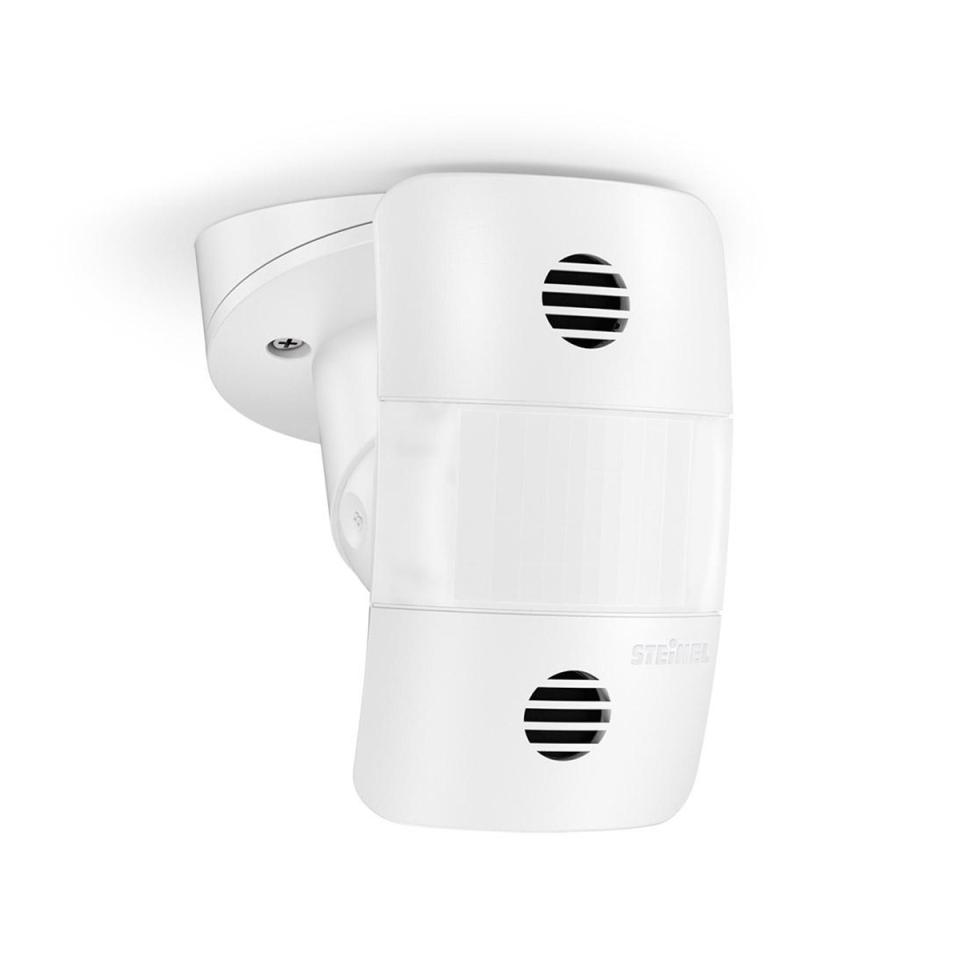

Dualtech PIR & 40 kHz Ultrasonic Presence Detector. Wall or Ceiling Mount. The DT CM COM1-24 Dual Technology Presence Detector utilizes passive infrared and ultrasonic technologies to detect the presence or signature of a person in a space. The logic options for initial "ON" and "Maintained" state of occupancy gives design engineers and installation contractors the choice for proper control of lighting and building automation in difficult applications where detection options are needed in a single device. Lighting loads are controlled in relation to both presence detection and selectable ambient light levels with the integrated force off photocell to maximize energy savings. STEINEL’s world class PIR optics and ultrasonic signal processing provides unparalleled line of sight and volumetric presence detection. Operational choices of auto on or manual on with a momentary or maintained switch input. The convenient "COM-Link" feature enables multiple sensors to link together via the communication link for peer to peer grouping achieving expanded detection zones with convenient control set up functions set at only one primary sensor for the entire group. The available service and user wireless remotes provide simplified commissioning and occupant convenience.
- Low voltage (18-24 VDC/VAC) sensor for use with a power pack or building automation system
- PIR & ultrasonic (40 kHz) presence detection
- Service and user wireless remotes available
- Manual ON mode (MAN) / Automatic mode (AUTO)
- Momentary / Maintained switch option
- ‘ON’ only / ‘ON’ & ‘OFF’ manual switching
- Light level feature turns lights off when sufficient daylight is present
- IQ Mode dynamically adjusts the ‘ON’ time delay by learning individual room occupancy
Control Pro Presence Detector
DT CM COM1-24
