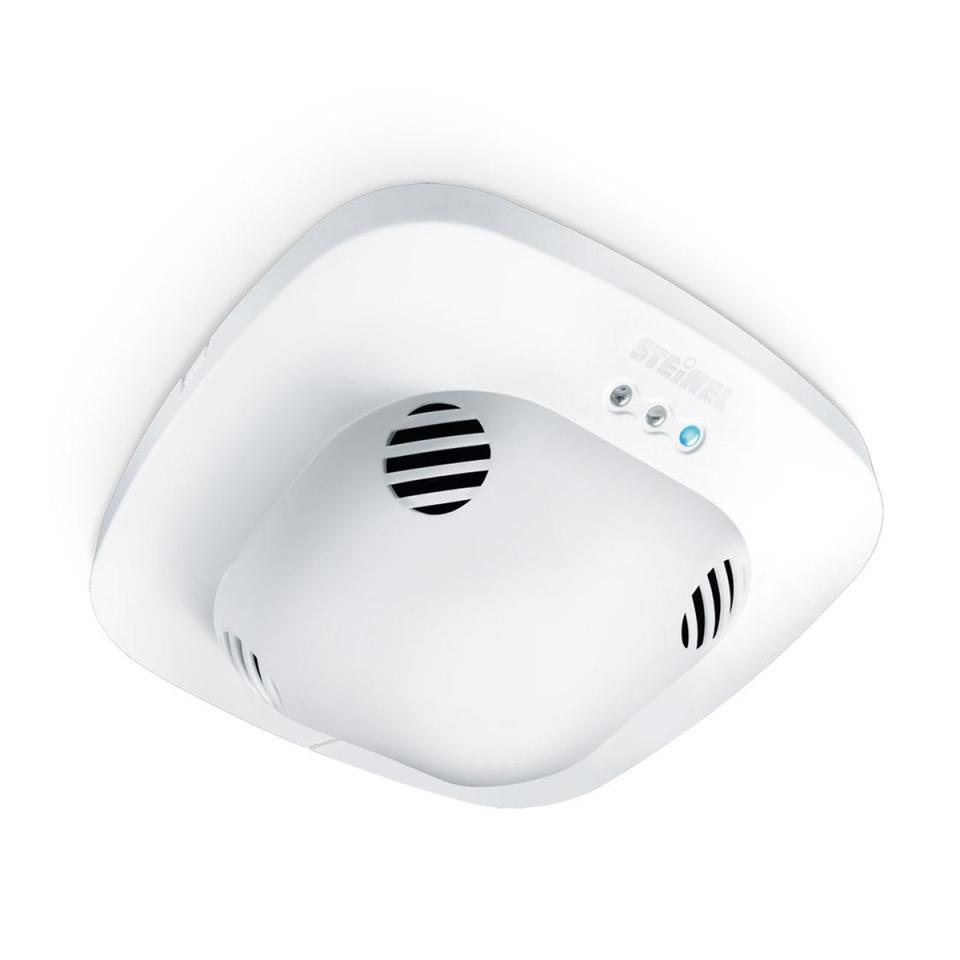

40 kHz Ultrasonic Presence Detector. Ceiling Mount. The US Quattro COM1-24 is a low voltage (40 kHz) Ultrasonic Technology Presence Detector that utilizes STEINEL’s state of the art ultrasonic signal processing to providing superior stable volumetric omnidirectional detection. Ultrasonic is used for best practice in design and retrofit applications where the sensor will not have a clear line of site view of the occupants in the desired coverage area. Operational choices of manual on or auto on with either momentary or maintained switch options. The force off light level feature provides the option to turn lights off when sufficient daylight is present for additional energy savings. The convenient “COM-Link” feature enables multiple sensors to link together via the communication link for pier to pier grouping achieving expanded detection zones with convenient control set up functions set at only one primary sensor for the entire group. Mounting options provide for 4” Square box, 4” Octagon box, Round 3.0 Mud-Ring or directly to the ceiling with quick mount spring tabs. The available service and user wireless remotes provide simplified commissioning and occupant convenience.
The Control PRO group of sensors are available in multiple technologies for the control of heating, ventilation and air conditioning as well as lighting (as in the COM2-24 versions) and optional 1-10 volt dimming and daylighting options (in the DIM-24 versions).
- Low voltage (18-24 VDC/VAC) sensor for use with a power pack or building automation system
- Omnidirectional ultrasonic (40 kHz) presence detection
- Service and user wireless remotes available
- Manual ON mode (MAN) / Automatic mode (AUTO)
- Momentary / Maintained switch option
- ‘ON’ only / ‘ON’ & ‘OFF’ manual switching
- Light level feature turns lights off when sufficient daylight is present
- Mounts to a 4” square box, 4” octagon box, round 3.0 mud-ring or directly to the ceiling with quick mount spring tabs
- IQ Mode dynamically adjusts the ‘ON’ time delay by learning individual room occupancy
Control Pro Presence Detector
US Quattro COM1-24
